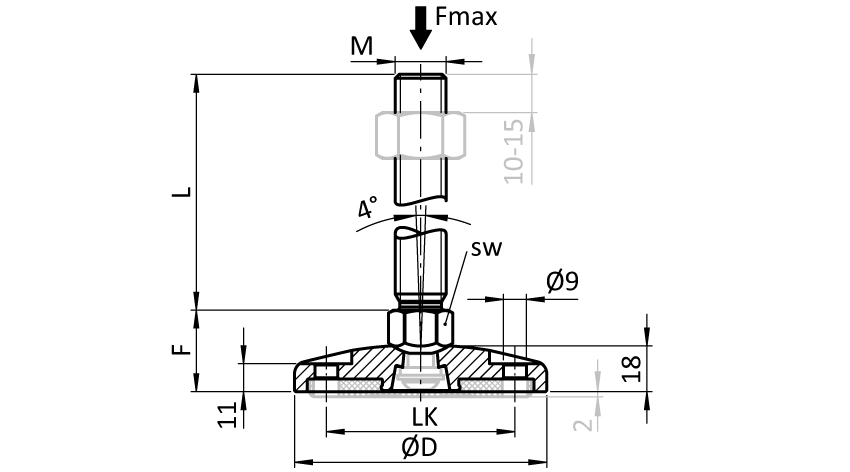

| Cikkszám | Rövid Cikkszám | Base | D (mm) | F (mm) | Weight g | SW (mm) | LK (mm) | M x L (mm) | Fmax N | Version | Step fájl | Ár / DB | Mennyiség | Árajánlat kérés |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 9A100EB20150E | 100 | 99 | 31 | 1183.4 | 22 | 74 | M20 x 150 | 23800 | without anti-slip plate | Nem tartozik hozzá dokumentum | 0 Ft +Áfa |

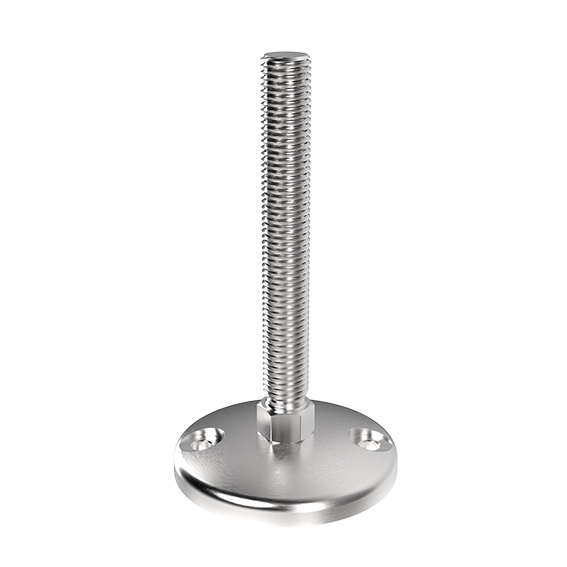

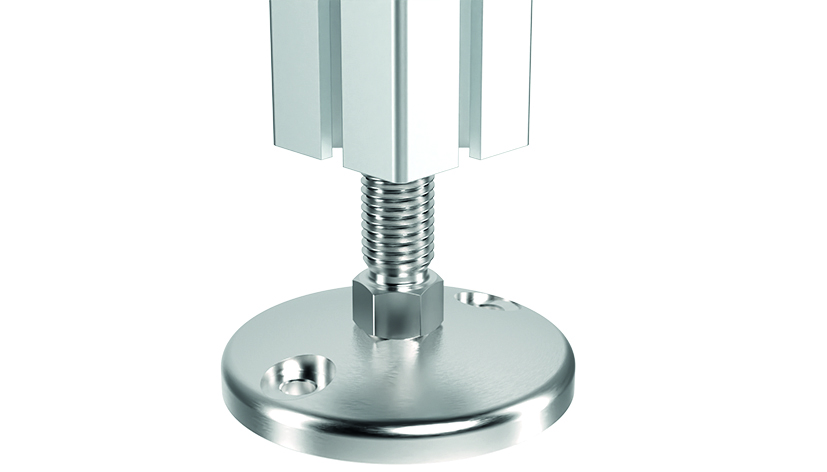

Pivot Foot, SS / SS – BDH
Model
Stainless steel, with bolt-down holes
Material
Base: Stainless steel
Threaded rod: Stainless steel
További információ
ESD electrostatical discharging, other sizes, other colors, glued anti-slip plate on request
Base: Plain
Compatible Nut see 4DIN439BM5M et sq. and 4DIN934M5M et sq.,
Color
Pack Quantity
1 piece
Specials
ESD electrostatical discharging, other sizes, other colors, glued anti-slip plate on request
Other lengths and other sizes on request
Surface
Base: Plain
Threaded rod: Plain
Tip
Compatible Nut see 4DIN439BM5M et sq. and 4DIN934M5M et sq.,
Compatible Anti-Slip Plate see 098AG050 et sq.
