| Cikkszám | Rövid Cikkszám | Base | D (mm) | Weight g | F1 (mm) | F2 (mm) | F3 (mm) | H (mm) | Fmax N | Version | Surface | Step fájl | Ár / DB | Mennyiség | Árajánlat kérés |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 098DI060ZS | 108944 | 60 | 59 | 98.0 | 29.5 | 32.5 | 33.5 | 18 | 24500 | without anti-slip plate | Letöltés 098DI060ZS.step | 1 550 Ft +Áfa | |||
| 098DI080ZS | 104066 | 80 | 76 | 109.0 | 29.5 | 32.5 | 33.5 | 20 | 29400 | without anti-slip plate | Black powder coated | Letöltés 098DI080ZS.step | 2 181 Ft +Áfa | ||
| 098DI060ZSG | 109851 | 60 | 59 | 110.0 | 29.5 | 32.5 | 33.5 | 18 | 24500 | with Anti-slip plate | Black powder coated | Letöltés 098DI060ZSG.step | 1 713 Ft +Áfa | ||
| 098DI080ZSG | 104067 | 80 | 76 | 122.0 | 29.5 | 32.5 | 33.5 | 20 | 29400 | with Anti-slip plate | Black powder coated | Letöltés 098DI080ZSG.step | 2 453 Ft +Áfa |

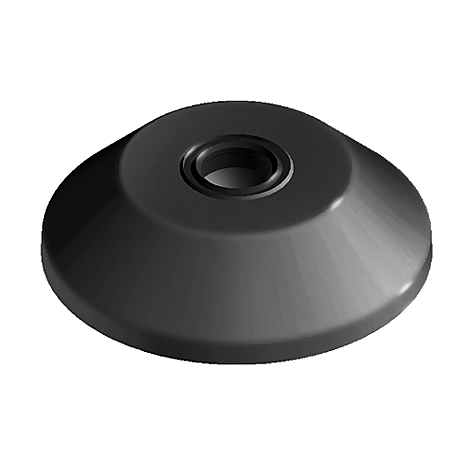

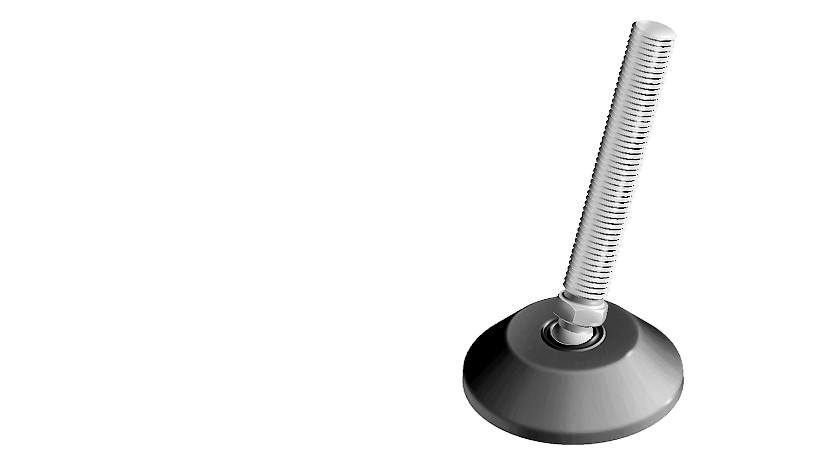

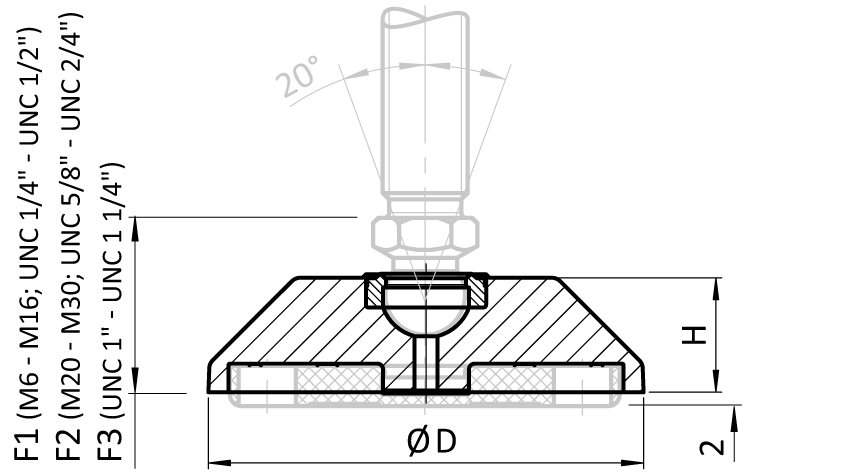

Trapezoid Base for Swivel Feet Ball Joint 15
Model
Zinc die-cast
Material
Zinc die-cast
További információ
Other surfaces, other sizes, other colors, screwed or glued anti-slip plate on request,
Compatible Threaded Rod see 098DM08025M et sq.,
Color
Black
Pack Quantity
10 pieces
Specials
Other surfaces, other sizes, other colors, screwed or glued anti-slip plate on request,
As factory assembled leveling foot on request
Surface
Powder coated
Tip
Compatible Threaded Rod see 098DM08025M et sq.,
Compatible Nut see 4DIN439BM5M et sq.,
Compatible Anti-slip Plate see 098DG030,
Compatible Floor Mounting see 098BI060ZS
| Tömeg | 0,12 kg |
|---|
