| Cikkszám | Rövid Cikkszám | Weight g | Profile | Version | Fig | Step fájl | Ár / DB | Mennyiség | Árajánlat kérés |
|---|---|---|---|---|---|---|---|---|---|

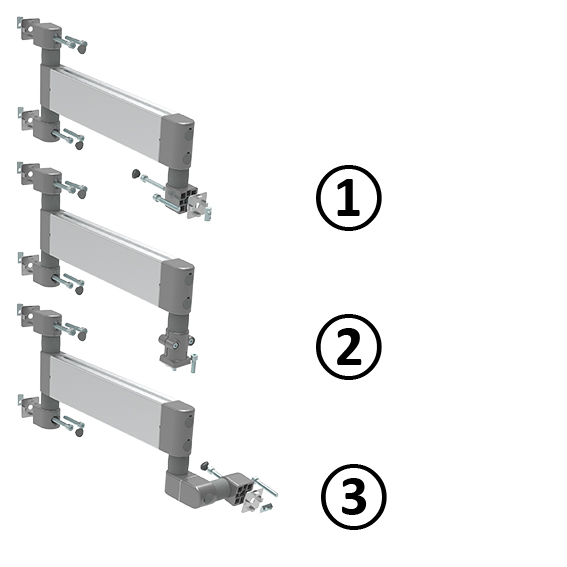

| 6FG80NH370S80N08 | 3350.3 | I | With Friction Joint | 1 | Letöltés 6FG80NH370S80N08.step | 0 Ft +Áfa | |||
| 6FA80NH370S80N08 | 148241 | 3325.8 | I | With End Friction Joint | 2 | Letöltés 6FA80NH370S80N08.step | 134 000 Ft +Áfa | ||
| 6FDG80NH370S80N08 | 4184.8 | I | With Double Friction Joint | 3 | Nem tartozik hozzá dokumentum | 0 Ft +Áfa |

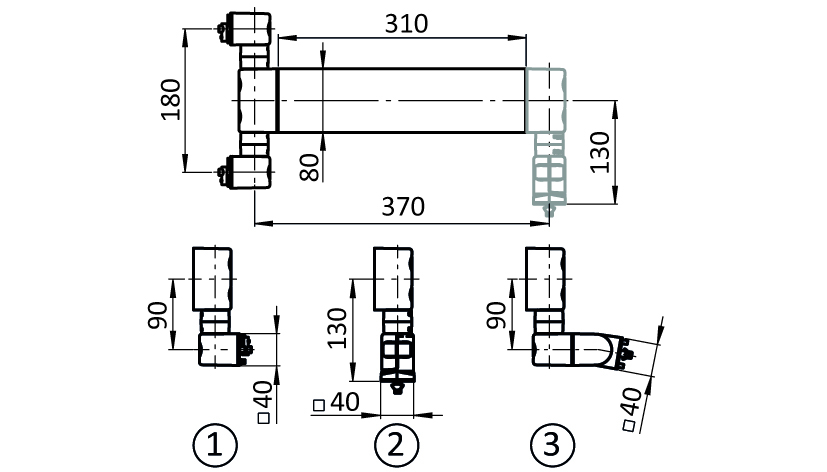

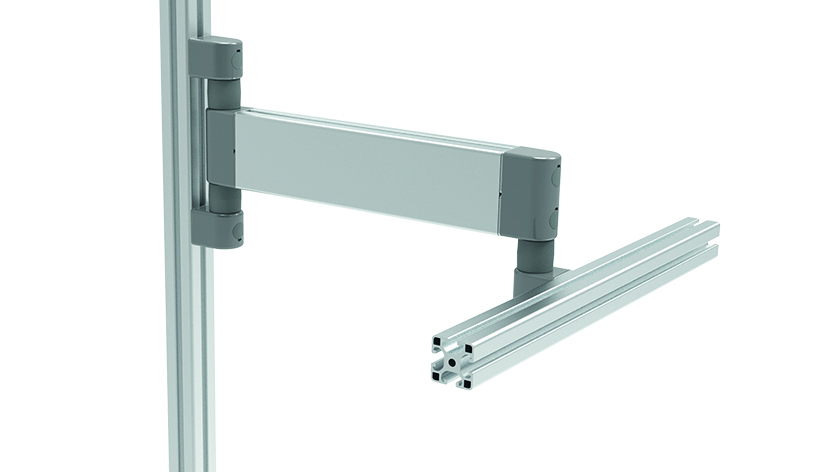

System Arm I80H 370 (Set)
Model
pre-assembled, profile 40 and up
Material
Arm: Aluminum
Housing: Aluminum die-cast
Cover ring: Plastic
Inserts: Steel
Friction shaft: Steel
Cover caps: Plastic
Screws: Steel
Washers: Steel
Centering plates: Aluminum die-cast
T-slot nuts: Steel
További információ
Arm: Alu color
Arm: Anodized
Color
Arm: Alu color
Housing: Alu color
Cover ring: Gray ≈ RAL 7042
Cover caps: Gray ≈ RAL 7042
Centering plates: Alu color
Pack Quantity
1 piece
Specials
Surface
Arm: Anodized
Housing: Powder coated
Screws: Zinc plated
Washers: Zinc plated
Centering plates: Powder coated
T-slot nuts: Zinc plated
Tip
| Tömeg | 4,18 kg |
|---|
