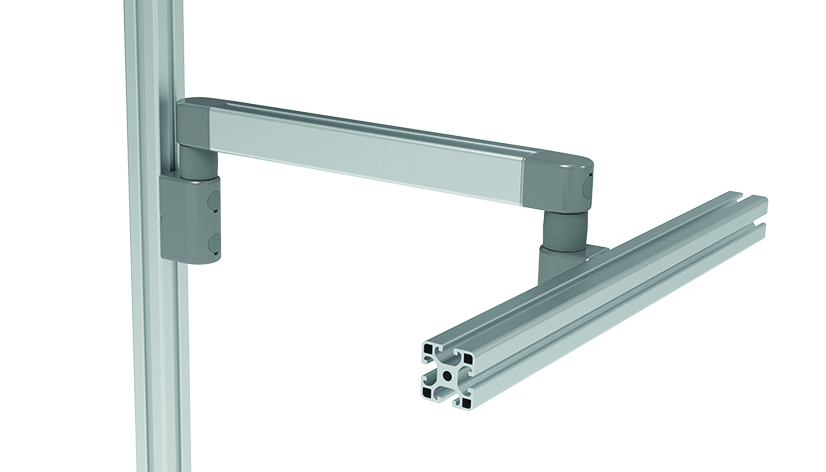

System Arm I40H 370 (Set)

Model

pre-assembled, profile 40 and up

Material

Arm: Aluminum
Housing: Aluminum die-cast
Cover ring: Plastic
Inserts: Steel
Friction shaft: Steel
Cover caps: Plastic
Screws: Steel
Washers: Steel
Centering plates: Aluminum die-cast
T-slot nuts: Steel
Monitor mount: Plastic PA, glas fiber reinforced

Color

Arm: Alu color
Housing: Alu color
Cover ring: Gray ≈ RAL 7042
Cover caps: Gray ≈ RAL 7042
Centering plates: Alu color
Monitor mount: Black

Pack Quantity

1 piece

Specials

Surface

Arm: Anodized
Housing: Powder coated
Screws: Zinc plated
Washers: Zinc plated
Centering plates: Powder coated
T-slot nuts: Zinc plated

Tip

Cikkszám: 6FG40NH370S40N08 Kategóriák: , ,

CikkszámRövid

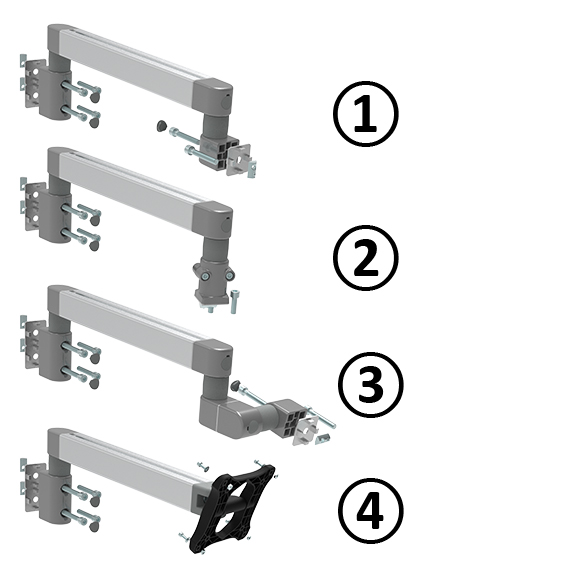

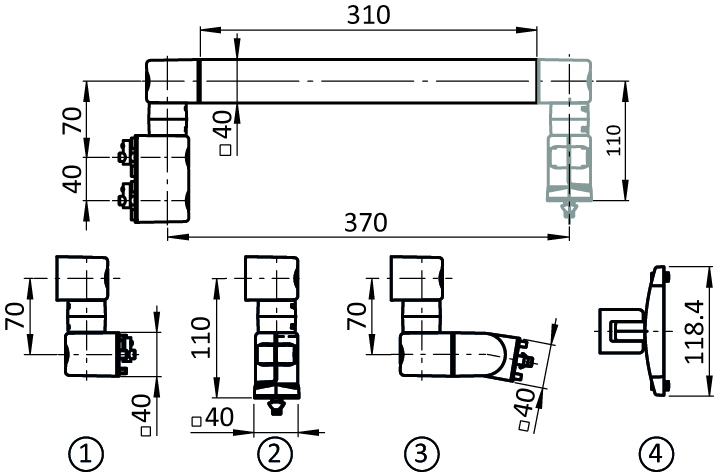

Cikkszám		Weight gProfileVersionFigStep fájlÁr / DBMennyiségÁrajánlat kérés
6FG40NH370S40N081482652278.0IWith Friction Joint1Letöltés 6FG40NH370S40N08.step82 900 Ft +Áfa
6FA40NH370S40N081482642253.5IWith End Friction Joint2Letöltés 6FA40NH370S40N08.step99 500 Ft +Áfa
6FDG40NH370S40N083112.5IWith Double Friction Joint3Nem tartozik hozzá dokumentum0 Ft +Áfa
6FMVNH370S40N081738.0IWith Monitor Mount4Nem tartozik hozzá dokumentum0 Ft +Áfa
Tömeg 1,73 kg
