| Cikkszám | Rövid Cikkszám | Weight g | Profile | Version | Step fájl | Ár / DB | Mennyiség | Árajánlat kérés |
|---|---|---|---|---|---|---|---|---|
| 093PS0840FS02 | 134615 | 155.0 | I | Fixed bearing with cam lever | Letöltés 093PS0840FS02.step | 6 025 Ft +Áfa |

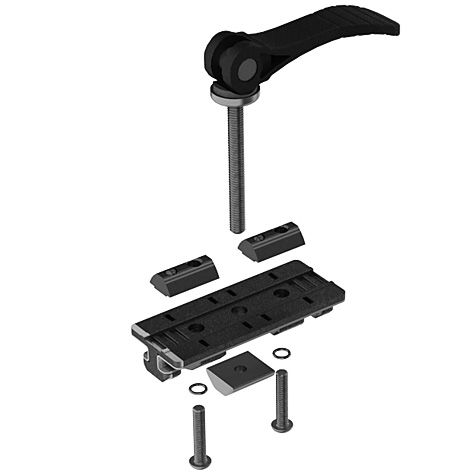

Profile Slider ZN 40 x 80 Fixed Bearing with Cam Lever (Set)
Model
Slot 8
Material
Sliding carriage: Zinc die-cast
Slide shoe: Plastic POM
Fixation: Steel
Cam lever handle: Plastic, glass fiber reinforced
Cam lever mechanics: Steel
O-ring: EPDM
További információ
Slide shoe: Natural
Sliding carriage: Zinc plated
* Profile tracks with several profile slides:
Color
Slide shoe: Natural
Cam lever handle: Black
O-ring: Black
Pack Quantity
10 sets
Specials
Surface
Sliding carriage: Zinc plated
Slide shoe: Zinc plated
Cam lever mechanics: Zinc plated
Tip
* Profile tracks with several profile slides:

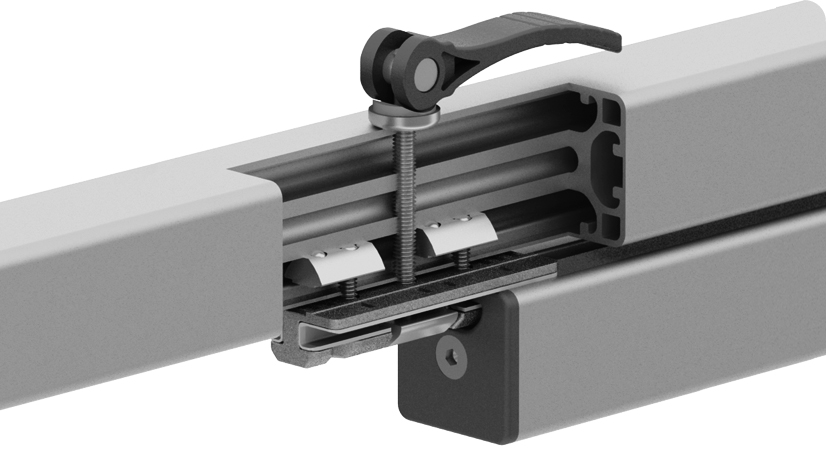

ZN 40 x 80 need to be executed as a combination of a loose bearing (L) and a fixed bearing (F). This way, shape tolerances can be compensated and easy movability is provided,
Compatible Profile Slider ZN 40 x 80 Loose bearing see 093PS0840L, Loose bearing with cam lever see 093PS0840LS02
| Tömeg | 0,15 kg |
|---|---|
| Teil-Nr. | |
| Rövid cikkszám | |
| Weight (g) | |
| Profile |
