| Cikkszám | Rövid Cikkszám | Weight g | Profile | Slot | Step fájl | Ár / DB | Mennyiség | Árajánlat kérés |
|---|---|---|---|---|---|---|---|---|
| 099J10M12 | 138406 | 49.7 | B | 10 | Letöltés 099J10M12.step | 1 519 Ft +Áfa | ||
| 099J10S12 | 146796 | 45.8 | B | 10 | Letöltés 099J10S12.step | 1 560 Ft +Áfa |

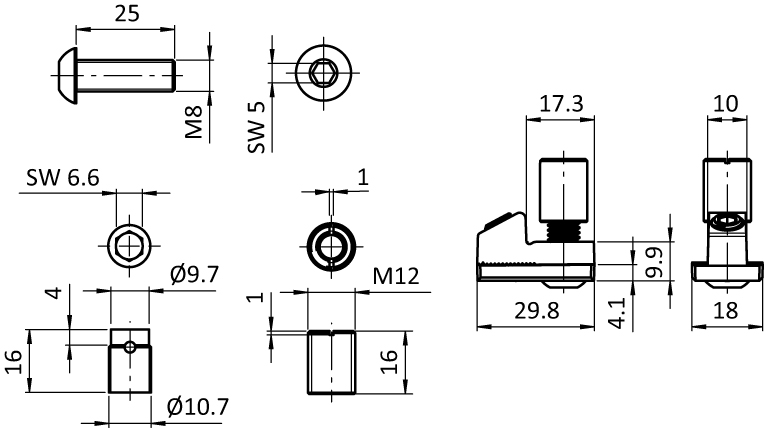

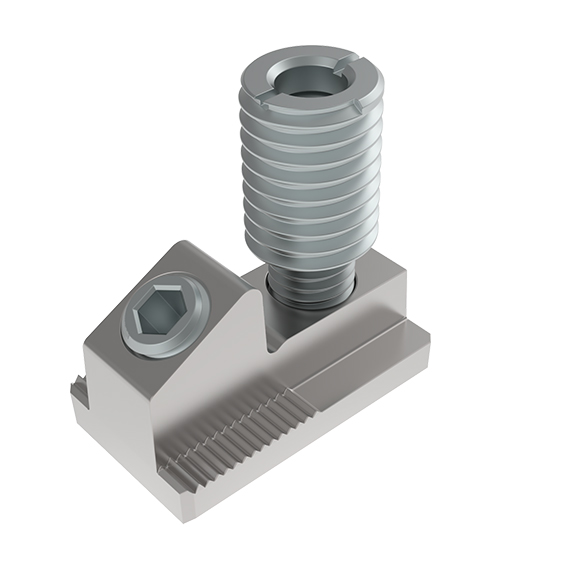

Profile Connector 90° B, Slot 10 (Set)
Model
Steel, slot 10
Material
Steel
További információ

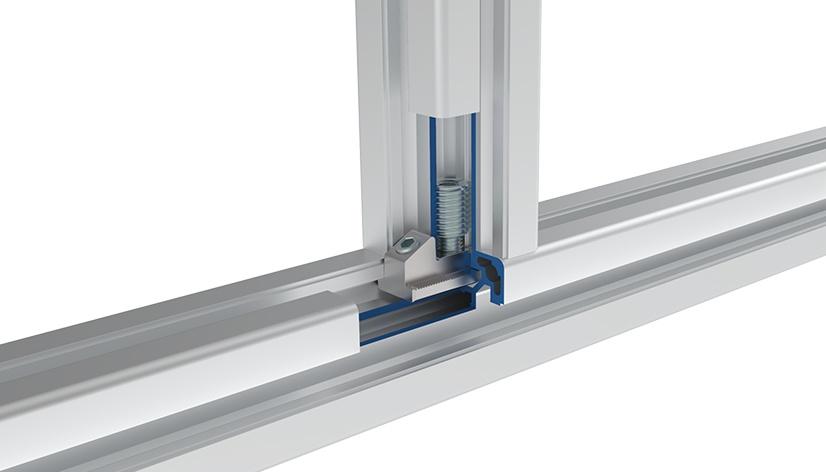

Assembly with threaded bush M12: Cut thread M12 in core hole Ø 10.2 mm, apply bush to screw and screw in together
Color
Pack Quantity
10 sets
Specials
Surface
Zinc plated
Tip
Assembly with threaded bush M12: Cut thread M12 in core hole Ø 10.2 mm, apply bush to screw and screw in together
Assembly with cutting bush S12: Turn cutting bush in core hole Ø 10.2 mm, fasten screw in bush
| Tömeg | 0,04 kg |
|---|
