| Cikkszám | Rövid Cikkszám | Base | Weight g | F1 (mm) | F2 (mm) | F3 (mm) | Fmax N | Version | Color | Step fájl | Ár / DB | Mennyiség | Árajánlat kérés |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 098DA080K | 111780 | 80 | 58.8 | 30.5 | 33.5 | 34.5 | 9800 | without anti-slip plate | Letöltés 098DA080K.step | 1 175 Ft +Áfa | |||
| 098DA080KG | 112816 | 80 | 93.8 | 30.5 | 33.5 | 34.5 | 9800 | with Anti-slip plate | Black | Letöltés 098DA080KG.step | 1 741 Ft +Áfa |

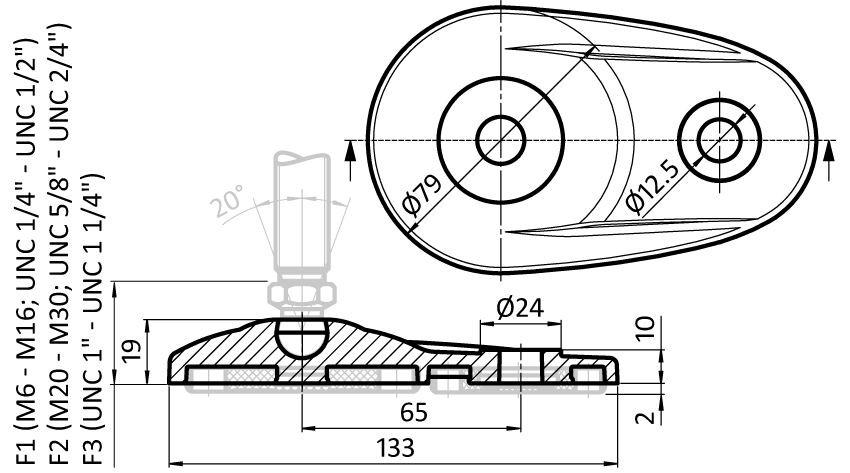

Extended Base 80 PA for Swivel Feet, Ball Joint 15
Model
Plastic PA
Material
Plastic PA, glass ball reinforced
További információ
ESD electrostatical discharging, other sizes, other colors, bolt-on or glued anti-slip plate on request,
Compatible Threaded Rod see 098DM08025M et sq. or 098DM08025E et sq.,
Color
Black
Pack Quantity
10 pieces
Specials
ESD electrostatical discharging, other sizes, other colors, bolt-on or glued anti-slip plate on request,
as factory assembled leveling foot on request
Surface
Tip
Compatible Threaded Rod see 098DM08025M et sq. or 098DM08025E et sq.,
Compatible Nut see 4DIN439BM5M et sq. or 4DIN934M5M et sq.,
Compatible Anti-Slip Plate see 098DG080 and 098AG060
| Tömeg | 0,09 kg |
|---|
