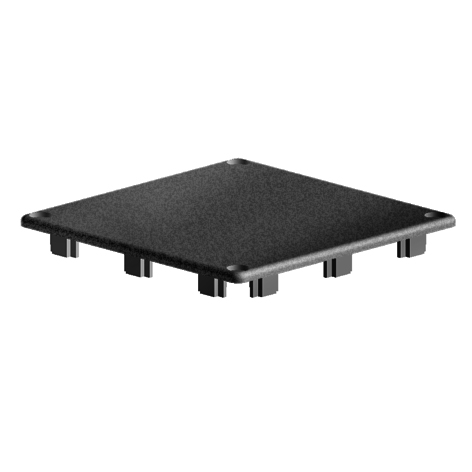

Name: Cover Cap for Conduit Profile
SKU: 091168
Availability: InStock

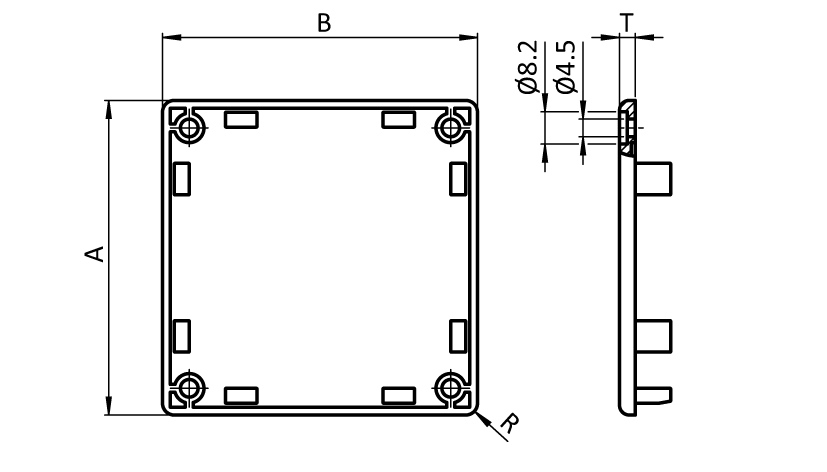

Cikkszám	Rövid Cikkszám	Weight g	Profile	Pack Quantity Pieces	R (mm)	Hole	T (mm)	Feature	Dimensions A x B (mm)	Color	Step fájl	Ár / DB
091168	100161	8.4	I	100	4.0	4 bore holes	4.0	4 support ribs	40 x 40		Letöltés 091168.step	311 Ft +Áfa
091194	100178	14.0	I	50	3.0	4 bore holes	4.0	6 fixation ribs	40 x 80	Black	Letöltés 091194.step	538 Ft +Áfa
091201	100185	21.8	I	10	3.0	4 bore holes	4.0	8 support ribs	40 x 120	Black	Letöltés 091201.step	674 Ft +Áfa
091195	100179	28.4	I	10	3.0	4 bore holes	4.0	8 support ribs	80 x 80	Black	Letöltés 091195.step	931 Ft +Áfa
091248L	100230	27.0	I	10	4.0	45° left, 3 bore holes	4.0	4 support ribs	80 x 80	Black	Letöltés 091248L.step	561 Ft +Áfa
091248R	100231	27.0	I	10	4.0	45° right, 3 bore holes	4.0	4 support ribs	80 x 80	Black	Letöltés 091248R.step	561 Ft +Áfa
091202	100186	46.6	I	10	3.0	4 bore holes	4.0	10 fixation ribs	80 x 120	Black	Letöltés 091202.step	1 202 Ft +Áfa
091203	100187	59.0	I	10	3.0	4 bore holes	4.0	12 fixation ribs	80 x 160	Black	Letöltés 091203.step	2 187 Ft +Áfa
091249R	100234	59.0	I	10	4.0	20° right, 4 bore holes	4.0	9 fixation ribs	80 x 160	Black	Letöltés 091249R.step	1 197 Ft +Áfa
091246	100228	72.8	I	10	3.0	4 bore holes	4.0	12 fixation ribs	120 x 120	Black	Letöltés 091246.step	1 741 Ft +Áfa
091247	100229	93.0	I	10	3.0	4 bore holes	4.0	14 fixation ribs	120 x 160	Black	Letöltés 091247.step	1 930 Ft +Áfa

Tömeg	0,09 kg

Cover Cap for Conduit Profile
