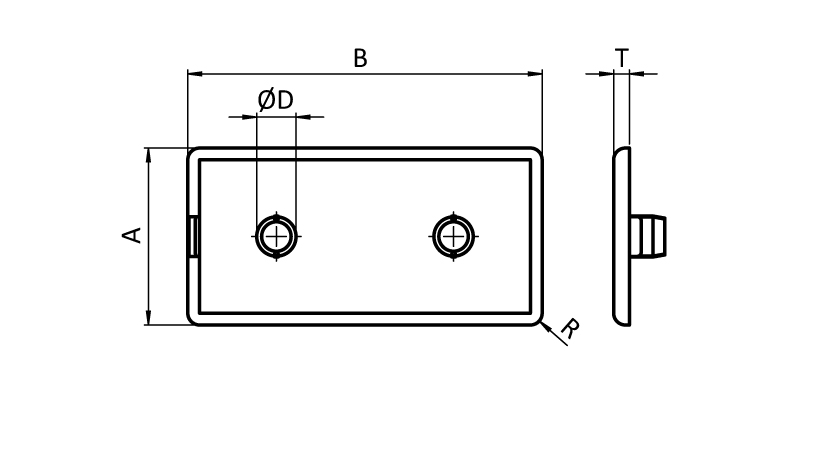

| Cikkszám | Rövid Cikkszám | Weight g | Color | Profile | R (mm) | diameter D (mm) | Slot | T (mm) | Feature | Dimensions A x B (mm) | Step fájl | Ár / DB | Mennyiség | Árajánlat kérés |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 091002 | 100003 | 4.4 | Black | B | 3.0 | 4.0 | 10 | 4.0 | 4 cross | 22.5 x 45 | Letöltés 091002.step | 189 Ft +Áfa | ||
| 091002S01 | 4.6 | Gray ≈ RAL 7004 | B | 3.0 | 4.0 | 10 | 4.0 | 4 pins | 22.5 x 45 | Letöltés 091002S01.step | 0 Ft +Áfa | |||
| 091011 | 100015 | 8.7 | Black | B | 4.0 | 10.4 (10.0) | 10 | 4.0 | 1 Pin for core hole | 45 x 45 | Letöltés 091011.step | 204 Ft +Áfa | ||
| 091011S03 | 109559 | 7.6 | Black | B | 4.0 | 10.4 (10.0) | 10 | 4.0 | 1 Pin for core hole, ESD electrostatical discharging | 45 x 45 | Letöltés 091011S03.step | 427 Ft +Áfa | ||
| 091011S14 | 138660 | 8.7 | Gray ≈ RAL 7004 | B | 4.0 | 10.4 (10.0) | 10 | 4.0 | 1 Pin for core hole | 45 x 45 | Letöltés 091011S14.step | 265 Ft +Áfa | ||
| 091288 | 116849 | 8.7 | Black | 2.5 | 10.4 | 10 | 4.0 | 1 Pin for core hole | 45 x 45 | Nem tartozik hozzá dokumentum | 204 Ft +Áfa | |||
| 091015 | 100020 | 8.4 | Black | B | 3.0 | 4.0 | 10 | 4.0 | With hole Ø 17.0 mm, 4 pins 4.3 | 45 x 45 | Letöltés 091015.step | 204 Ft +Áfa | ||
| 091015S02 | 138580 | 7.3 | Black | B | 3.0 | 4.0 | 10 | 4.0 | With hole Ø 17.0 mm, 4 pins 4.3, ESD electrostatical discharging | 45 x 45 | Letöltés 091015S02.step | 400 Ft +Áfa | ||
| 091015S03 | 138654 | 8.4 | Gray ≈ RAL 7004 | B | 3.0 | 4.0 | 10 | 4.0 | With hole Ø 17.0 mm, 4 pins 4.3 | 45 x 45 | Letöltés 091015S03.step | 400 Ft +Áfa | ||
| 091112 | 100090 | 9.0 | Black | 3.0 | 6.9 | 10 | 4.0 | 1 Kreuz | 45 x 45 | Nem tartozik hozzá dokumentum | 204 Ft +Áfa | |||
| 091214 | 100195 | 7.6 | Black | 1.75 | 10.0 | 10 | 4.0 | 1 Pin for core hole | 45 x 45 R40 - 90° | Nem tartozik hozzá dokumentum | 204 Ft +Áfa | |||
| 091130 | 100111 | 7.4 | Black | B | 3.0 | 10.0 | 10 | 4.0 | 1 Pin for core hole | 45 x 45 R37.5 - 90° | Letöltés 091130.step | 204 Ft +Áfa | ||
| 091130S03 | 138653 | 7.4 | Gray ≈ RAL 7004 | B | 3.0 | 10.0 | 10 | 4.0 | 1 Pin for core hole | 45 x45 R37.5 - 90° | Letöltés 091130S03.step | 347 Ft +Áfa | ||
| 091017 | 100021 | 11.4 | Black | B | 3.0 | 10.8 (10.0) | 10 | 4.0 | 1 Pin for core hole | 45 x 60 | Letöltés 091017.step | 356 Ft +Áfa | ||
| 091017S04 | 138642 | 11.1 | Gray ≈ RAL 7004 | B | 3.0 | 10.8 (10.0) | 10 | 4.0 | 1 Pin for core hole | 45 x 60 | Letöltés 091017S04.step | 427 Ft +Áfa | ||
| 091083 | 100072 | 10.1 | Black | B | 3.0 | (4.0) | 10 | 4.0 | With hole Ø 18.3 mm, 4 pins 4.3 | 45 x 60 | Letöltés 091083.step | 356 Ft +Áfa | ||
| 091083S01 | 138582 | 8.8 | Black | B | 3.0 | (4.0) | 10 | 4.0 | With hole Ø 18.3 mm, 4 pins 4.3, ESD elektrostatical discharging | 45 x 60 | Letöltés 091083S01.step | 467 Ft +Áfa | ||
| 091083S02 | 138643 | 10.2 | Gray ≈ RAL 7004 | B | 3.0 | (4.0) | 10 | 4.0 | With hole Ø 18.3 mm, 4 pins 4.3 | 45 x 60 | Letöltés 091083S02.step | 427 Ft +Áfa | ||
| 091113 | 100091 | 19.6 | Black | 3.0 | 6.9 | 10 | 4.0 | 2 crosses | 45 x 90 | Nem tartozik hozzá dokumentum | 476 Ft +Áfa | |||
| 091006 | 100006 | 17.2 | Black | B | 3.0 | 10.4 (10.0) | 10 | 4.0 | 2 Pins for core hole | 45 x 90 | Letöltés 091006.step | 476 Ft +Áfa | ||
| 091006S07 | 138663 | 17.2 | Gray ≈ RAL 7004 | B | 3.0 | 10.4 (10.0) | 10 | 4.0 | 2 Pins for core hole | 45 x 90 | Nem tartozik hozzá dokumentum | 574 Ft +Áfa | ||
| 091064 | 100057 | 20.5 | Black | 3.0 | 10.6 | 10 | 4.0 | 2 Pins for core hole | 45 x 90 | Letöltés 091064.step | 371 Ft +Áfa | |||
| 091207 | 100190 | 41.2 | Black | B | 3.0 | 15.1 | 10 | 4.0 | New version, 4 support ribs | 90 x 90 | Letöltés 091207.step | 704 Ft +Áfa | ||
| 091207S04 | 138587 | 32.0 | Black | B | 3.0 | 15.1 | 10 | 4.0 | New version, 4 support ribs, ESD electrostatical discharging | 90 x 90 | Letöltés 091207S04.step | 760 Ft +Áfa | ||
| 091207S05 | 138639 | 41.2 | Gray ≈ RAL 7004 | B | 3.0 | 15.1 | 10 | 4.0 | New version, 4 support ribs | 90 x 90 | Letöltés 091207S05.step | 722 Ft +Áfa | ||
| 091276 | 114094 | 43.3 | Black | B | 3.0 | 15.2 | 10 | 4.0 | 8 support ribs | 90 x 90 | Letöltés 091276.step | 825 Ft +Áfa | ||
| 091276S03 | 41.2 | Gray ≈ RAL 7004 | B | 3.0 | 15.2 | 10 | 4.0 | 8 support ribs | 90 x 90 | Nem tartozik hozzá dokumentum | 0 Ft +Áfa | |||
| 091024 | 100029 | 38.5 | Black | B | 3.5 | - | 10 | 4.0 | 4 support ribs | 90 x 90 | Nem tartozik hozzá dokumentum | 704 Ft +Áfa | ||
| 091169 | 100162 | 40.5 | Black | 3.5 | 10.5 | 4.0 | 4 crosses | 90 x 90 | Nem tartozik hozzá dokumentum | 704 Ft +Áfa | ||||
| 091030 | 100035 | 44.5 | Black | B | 5.0 | 10.2 (10.0) | 10 | 4.0 | 4 pins for core hole, 4 pins | 90 x 90 light (superlight) | Letöltés 091030.step | 704 Ft +Áfa | ||
| 091030S03 | 138584 | 33.8 | Black | B | 5.0 | 10.2 (10.0) | 10 | 4.0 | 4 core holes, 4 pins, ESD electrostatical discharging | 90 x 90 light (superlight) | Letöltés 091030S03.step | 760 Ft +Áfa | ||
| 091030S04 | 138664 | 44.8 | Gray ≈ RAL 7004 | B | 5.0 | 10.2 (10.0) | 10 | 4.0 | 4 pins for core hole, 4 pins | 90 x 90 light (superlight) | Letöltés 091030S04.step | 722 Ft +Áfa | ||
| 091017S02 | 112583 | 11.4 | Black | B | 3.0 | 10.8 (10.0) | 10 | 4.0 | ESD electrostatical discharging, 1 pin for core hole | 45 x 60 | Letöltés 091017S02.step | 729 Ft +Áfa |

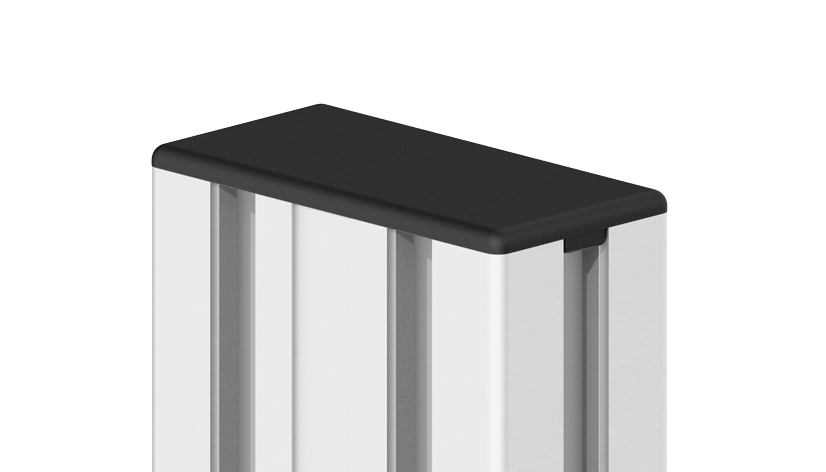

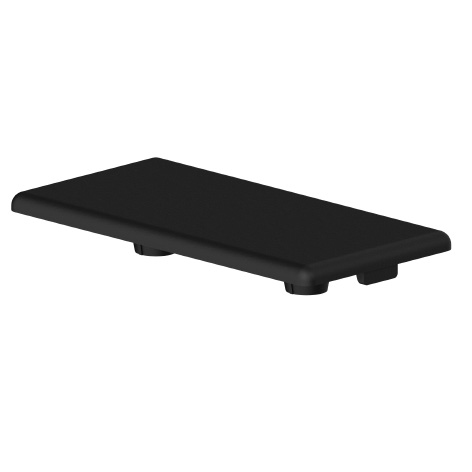

Cover Cap for 45 mm Modular Dimension
Model
45 mm modular dimension
Material
Plastic PA, glass fiber reinforced
További információ
Color
Black, gray
Pack Quantity
100 pieces
Specials
ESD electrostatical discharging, other sizes, other colors on request
Surface
Tip
| Tömeg | 0,01 kg |
|---|
