| Cikkszám | Rövid Cikkszám | Weight g | Color | Surface | H (mm) | L (mm) | A (mm) | B (mm) | for Screw | Fig | Tip | Step fájl | Ár / DB | Mennyiség | Árajánlat kérés |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 093V3090S | 141272 | 78.0 | Black | Powder coated | 4.0 | 90.0 | 2x 30.0 | 30.0 | 3x M6 | 1 | * | Letöltés 093V3090S.step | 980 Ft +Áfa | ||
| 093V3090A | 76.6 | Alu color | Powder coated | 4.0 | 90.0 | 2x 30.0 | 30.0 | 3x M6 | 2 | Letöltés 093V3090A.step | 0 Ft +Áfa | ||||
| 093V40120S | 134482 | 172.0 | Black | Powder coated | 5.0 | 120.0 | 2x 40.0 | 40.0 | 3x M8 | 1 | Letöltés 093V40120S.step | 1 316 Ft +Áfa | |||
| 093V40120A | 147290 | 172.4 | Alu color | Powder coated | 5.0 | 120.0 | 2x 40.0 | 40.0 | 3x M8 | 2 | Nem tartozik hozzá dokumentum | 1 498 Ft +Áfa |

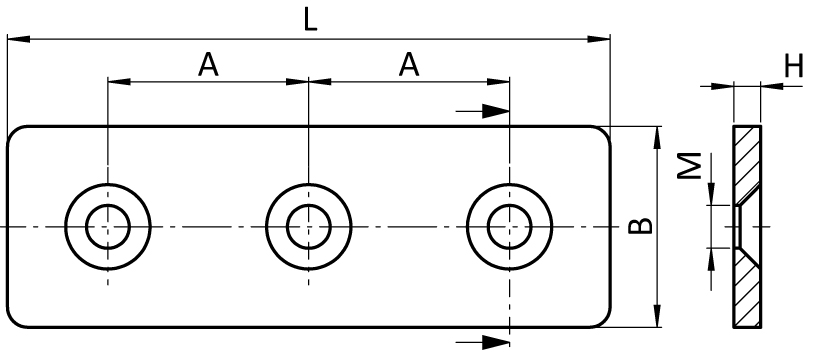

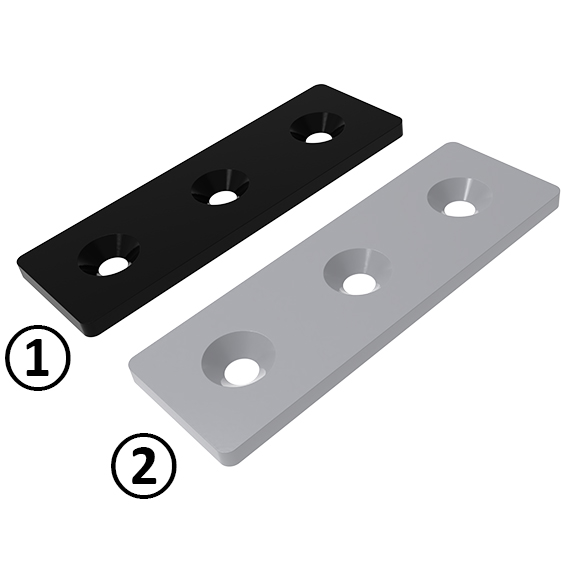

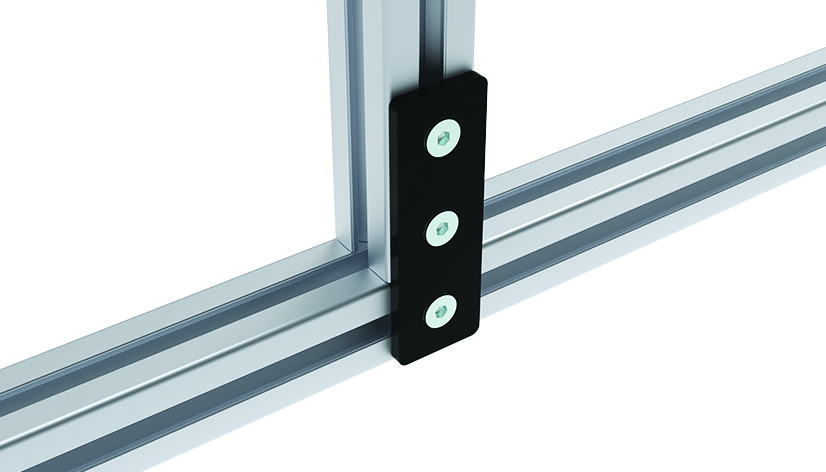

Connection Plate ST Rectangular 3 Hole, 1 Slot Version
Model
Steel, profile 20 and up
Material
Steel
További információ
Color
Black, aluminum color
Pack Quantity
10 pieces
Specials
Other surfaces, other colors on request
Surface
Powder coated
Tip
| Tömeg | 0,17 kg |
|---|
