| Cikkszám | Rövid Cikkszám | Base | D (mm) | Weight g | F1 (mm) | F2 (mm) | F3 (mm) | Fmax N | Version | Color | Step fájl | Ár / DB | Mennyiség | Árajánlat kérés |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 098D030K | 103841 | 30 | 29 | 8.0 | 29.5 | 32.5 | 33.5 | 4900 | without anti-slip plate | Letöltés 098D030K.step | 311 Ft +Áfa | |||
| 098D040K | 103856 | 40 | 39 | 13.0 | 29.5 | 32.5 | 33.5 | 8820 | without anti-slip plate | Black | Letöltés 098D040K.step | 316 Ft +Áfa | ||
| 098D045K | 103873 | 45 | 44 | 15.0 | 29.5 | 32.5 | 33.5 | 8820 | without anti-slip plate | Black | Letöltés 098D045K.step | 356 Ft +Áfa | ||
| 098D050K | 103886 | 50 | 49 | 16.0 | 29.5 | 32.5 | 33.5 | 8820 | without anti-slip plate | Black | Letöltés 098D050K.step | 347 Ft +Áfa | ||
| 098D060K | 103901 | 60 | 59 | 22.0 | 29.5 | 32.5 | 33.5 | 8820 | without anti-slip plate | Black | Letöltés 098D060K.step | 358 Ft +Áfa | ||
| 098D080K | 103930 | 80 | 79 | 44.0 | 29.5 | 32.5 | 33.5 | 8820 | without anti-slip plate | Black | Letöltés 098D080K.step | 386 Ft +Áfa | ||
| 098D100K | 103977 | 100 | 99 | 84.0 | 29.5 | 32.5 | 33.5 | 8820 | without anti-slip plate | Black | Letöltés 098D100K.step | 755 Ft +Áfa | ||
| 098D030KG | 103842 | 30 | 29 | 10.0 | 29.5 | 32.5 | 33.5 | 4900 | with Anti-slip plate | Black | Letöltés 098D030KG.step | 484 Ft +Áfa | ||
| 098D040KG | 103857 | 40 | 39 | 17.0 | 29.5 | 32.5 | 33.5 | 8820 | with Anti-slip plate | Black | Letöltés 098D040KG.step | 515 Ft +Áfa | ||
| 098D045KG | 103874 | 45 | 44 | 21.0 | 29.5 | 32.5 | 33.5 | 8820 | with Anti-slip plate | Black | Letöltés 098D045KG.step | 561 Ft +Áfa | ||
| 098D050KG | 103887 | 50 | 49 | 24.0 | 29.5 | 32.5 | 33.5 | 8820 | with Anti-slip plate | Black | Letöltés 098D050KG.step | 561 Ft +Áfa | ||
| 098D060KG | 103902 | 60 | 59 | 34.0 | 29.5 | 32.5 | 33.5 | 8820 | with Anti-slip plate | Black | Letöltés 098D060KG.step | 575 Ft +Áfa | ||
| 098D080KG | 103941 | 80 | 79 | 67.0 | 29.5 | 32.5 | 33.5 | 8820 | with Anti-slip plate | Black | Letöltés 098D080KG.step | 727 Ft +Áfa | ||
| 098D100KG | 103987 | 100 | 99 | 121.0 | 29.5 | 32.5 | 33.5 | 8820 | with Anti-slip plate | Black | Letöltés 098D100KG.step | 1 406 Ft +Áfa |

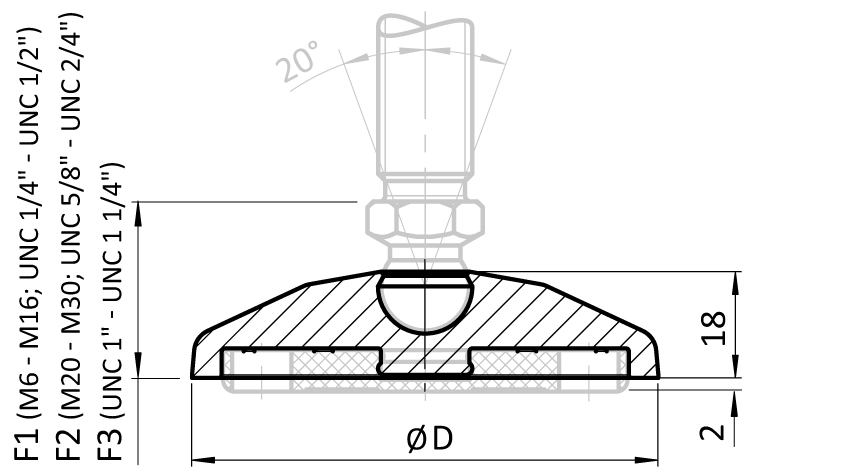

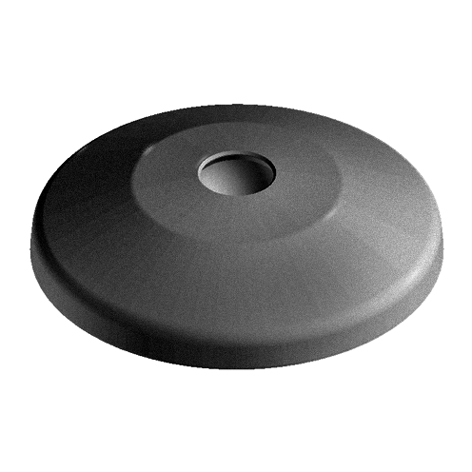

Base PA for Swivel Feet, Ball Joint 15, Black
Model
Plastic PA, without bolt-down holes
Material
Plastic PA, glass ball reinforced
További információ
ESD electrostatical discharging, other sizes, other colors, bolt-on or glued anti-slip plate on request,
Compatible Threaded Rod see 098DM08025M et sq. and 098DM08025E et sq.,
Color
Black
Pack Quantity
10 pieces
Specials
ESD electrostatical discharging, other sizes, other colors, bolt-on or glued anti-slip plate on request,
as factory assembled leveling foot on request
Surface
Tip
Compatible Threaded Rod see 098DM08025M et sq. and 098DM08025E et sq.,
Compatible Nut see 4DIN439BM5M et sq. and 4DIN934M5M et sq.,
Compatible Anti-Slip Plate see 098DG030 et sq.
| Tömeg | 0,12 kg |
|---|
